Portable Ground Resistance Tester with Warning Function and High Precision

Name: Portable Ground Resistance Tester with Warning Function and High Precision
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHJD706
Price: 440.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Xi'an Shaanxi Cina
Marca:	XZH TEST
Certificazione:	ISO CE
Numero di modello:	XHJD706

Informazione dettagliata

Luogo di origine:

Xi'an Shaanxi Cina

Marca:

XZH TEST

Certificazione:

ISO CE

Numero di modello:

XHJD706

Tipo di misurazione:

Tensione di terra/Resistenza di terra

Campo di misurazione della resistenza di terra:

0~1999Ω

Campo di misurazione della tensione di terra:

0~199,9 V

Precisione della misurazione della resistenza:

[20Ω] ±2% della lettura (risoluzione 0,1Ω); [200/2000Ω] ±2% della lettura ±3 cifre (risoluzione 1Ω)

Precisione della misurazione della tensione:

±1% della lettura ±4 cifre

Fonte di energia:

6 batterie R6P (AA) da 1,5 V

Evidenziare:

High Light

Evidenziare:

Warning Function Ground Resistance Tester

Portable Earth Resistance Tester

High Precision Ground Tester

Trading Information

Quantità di ordine minimo:

1SET

Prezzo:

Negoziabile

Imballaggi particolari:

imballaggio in legno

Tempi di consegna:

5-8 giorni lavorativi

Termini di pagamento:

T/T

Capacità di alimentazione:

3000 unità/anno

Descrizione di prodotto

Product Introduction

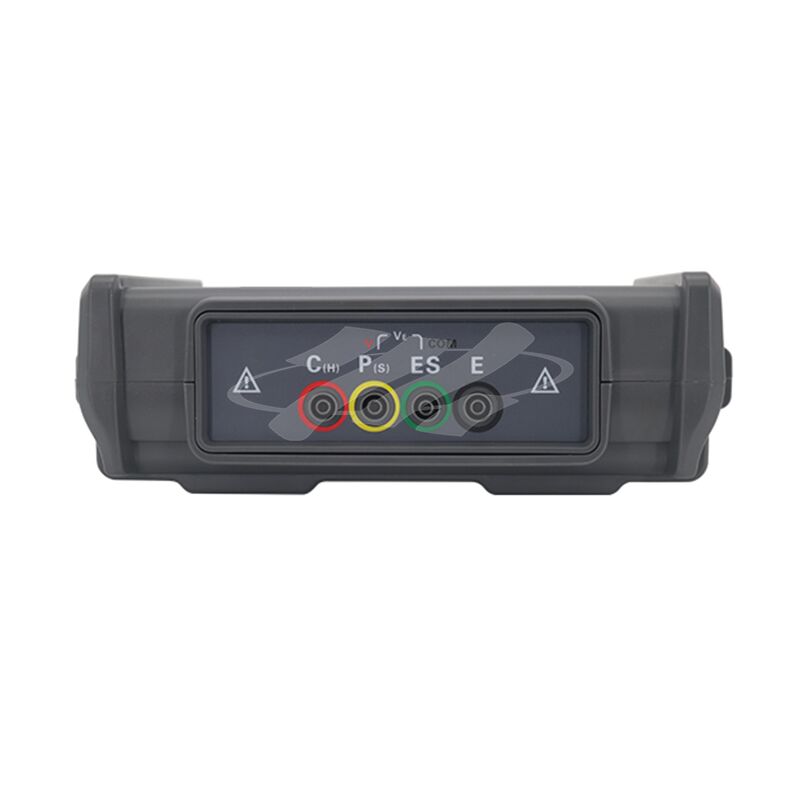

XHDJ706 Earth Resistance Tester is specialized in measuring earth resistance for various electrical equipment across power, meteorology, oil field, construction, lightning protection and industrial scenarios.

Core Performance

2mA measuring current ensures no tripping of the tested loop’s earth leakage circuit breaker during earth resistance detection.
Fitted with basic test probes, and enables accurate earth voltage measurement.
Triggers a warning if the auxiliary earth resistance exceeds the normal range, and features a convenient resistance zeroing function.
IEC60529 (IP54) certified dust and water-proof structure for stable operation in complex environments.

Technical Data

Measuring Type	Earth Voltage / Earth Resistance
Earth Resistance Measuring Range	0～1999Ω
Earth Voltage Measuring Range	0～199.9V
Resistance Measurement Precision	[20Ω] ±2% of reading (0.1Ω resolution); [200/2000Ω] ±2% of reading ±3 digits (1Ω resolution)
Voltage Measurement Precision	±1% of reading ±4 digits
Power Source	6 pieces of R6P(AA) 1.5V batteries
Overall Dimensions	170mm (Length) × 120mm (Width) × 65mm (Height)

Application Environments

Power Systems: Power generation, transmission, substations, distribution, etc.
Industrial & Mining: Large-scale manufacturing facilities and various mining companies.
Metallurgy & Petrochemicals: Smelting, chemical processing, water treatment, etc.
Transportation: Ports, railways, highways, airports, municipal street lighting, etc.
Enterprises & Institutions: Logistics and facilities departments of large organizations.
Construction Industry: Major construction firms and property management companies.
Power Installation & Commissioning: Companies specializing in power system installation and commissioning across various voltage levels.

Troubleshooting & Support

If you encounter any abnormal behavior or malfunctions with the instrument, please do not attempt to power it on or disassemble it yourself. Instead, please contact our company immediately so that we may arrange an appropriate resolution for you.
