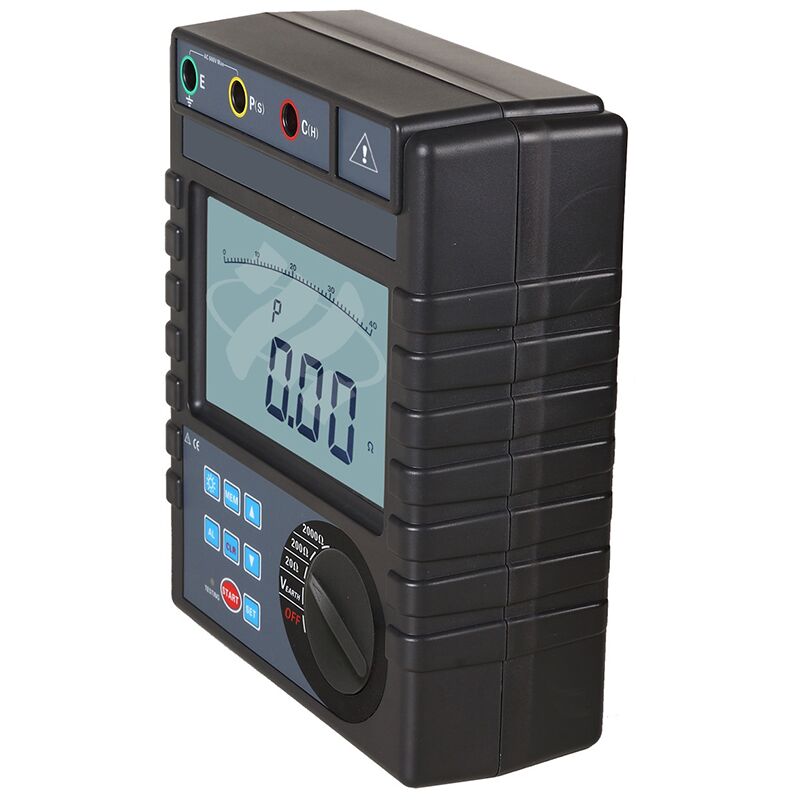

Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705

Name: Portable Ground Resistance Tester with Liquid Crystal Display XHDJ705
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHDJ705
Price: 440.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Xi'an Shaanxi Cina
Marca:	XZH TEST
Certificazione:	ISO CE
Numero di modello:	XHDJ705

Informazione dettagliata

Luogo di origine:

Xi'an Shaanxi Cina

Marca:

XZH TEST

Certificazione:

ISO CE

Numero di modello:

XHDJ705

Funzioni core:

In grado di misurare la resistenza di terra, la misurazione della tensione di terra e la misurazione

Configurazione dell'alimentatore:

Alimentato da DC 9 V (6 batterie R14S da 1,5 V), con un tempo di standby continuo estremamente lungo

Schemi di misurazione:

Supporta la misurazione a 3 fili, la misurazione a 2 fili e visualizza il valore medio, il valore ma

Principio del test della resistenza di terra:

Adotta il metodo del polo variabile della corrente nominale, con corrente di misurazione massima di

Modalità di test della tensione di terra:

Adotta la modalità di rettifica del valore medio; dotato di display LCD sovradimensionato a 4 cifre

Gamma e precisione della resistenza di terra:

Campo di misura 0,01Ω~2000Ω, precisione di misura ±1% lettura ±3 cifre, rapporto di risoluzione 0,01

Evidenziare:

High Light

Evidenziare:

Liquid Crystal Display Ground Resistance Tester

Portable Earth Resistance Tester

High Precision Ground Tester

Trading Information

Quantità di ordine minimo:

1SET

Prezzo:

Negoziabile

Imballaggi particolari:

imballaggio in legno

Tempi di consegna:

5-8 giorni lavorativi

Termini di pagamento:

T/T

Capacità di alimentazione:

3000 unità/anno

Descrizione di prodotto

Portable Ground Resistance Tester with Liquid Crystal Display for High Precision Earth Resistance Measurement

Product Overview

The XHDJ705 Digital Earth Resistance Tester is a professional measuring instrument independently designed and manufactured for field-based earth resistance detection. It boasts wide applicability and can be used to measure the earth resistance of various facilities including power grids, meteorological equipment, oilfield installations, construction projects, lightning protection systems and industrial electrical devices.

Performance Features

Engineered with advanced digital circuit and microprocessor control technologies, this instrument supports both 3-wire and 2-wire standard measurement methods for earth resistance. It features a proprietary line resistance calibration function that eliminates measurement errors caused by wire resistance, coupled with exceptional anti-electromagnetic interference performance and strong environmental adaptability to harsh working conditions. These core advantages ensure the instrument maintains high measurement accuracy, outstanding stability and reliable operation throughout long-term service.

Technical Parameters

Core Functions	Capable of earth resistance measurement, earth voltage measurement and low-value resistance measurement to meet diversified testing demands
Power Supply Configuration	Powered by DC 9V (6 pieces of 1.5V R14S batteries), with a super-long continuous standby time of 300 hours to support long-term field work
Measurement Schemes	Supports 3-wire measurement, 2-wire measurement, and displays average value, maximum value and minimum value of test results
Earth Resistance Testing Principle	Adopts rated current variable pole method, with maximum measurement current of 3mA and working frequency of 820Hz
Earth Voltage Testing Mode	Measuring range 0.01Ω～2000Ω, measurement accuracy ±1% reading ±3 digits, resolution ratio 0.01Ω
Earth Resistance Range & Accuracy	Measuring range AC 0～600V, measurement accuracy ±1% reading ±3 digits, resolution ratio 1V
Earth Voltage Range & Accuracy	Earth voltage measurement: 3 times per second; Earth resistance measurement: 5 seconds per measurement
Measurement Efficiency	Equipped with RS232 interface to upload stored data to computer for archiving and printing; supports 400 groups of data storage, and the flashing "FULL" icon prompts that the memory is full
Data Communication & Storage	Operating temperature range -10℃～40℃, relative humidity below 80%RH (no condensation)
Operating Environment Requirements

1. Robust Brand Strength:** Leveraging the extensive scientific research resources of universities in Xi'an, Xi'an Xuzhihui Electromechanical has dedicated years to deep specialization in the field of power testing equipment. Integrating R&D, manufacturing, sales, and service, our products have undergone rigorous market scrutiny and enjoy a reputation for reliability that is truly worthy of trust.
2. Industry-Leading Technology:** The XHDJ705 incorporates advanced digital circuitry and sophisticated anti-interference technology. Compared to traditional grounding testers, it offers faster testing speeds, greater data accuracy, and superior stability, perfectly meeting the intelligent and automated demands of modern power testing applications.

3. Exceptional Cost-Effectiveness:** Operating on a direct-from-manufacturer sales model eliminates intermediary channels, allowing us to offer more accessible pricing without compromising on quality. By striking an optimal balance between product performance and procurement costs, it stands as the preferred choice for enterprises and testing institutions seeking to reduce expenses and enhance operational efficiency.

4. Comprehensive Service Assurance:** From product selection and operational training to after-sales maintenance and technical upgrades, Xi'an Xuzhihui provides a seamless, one-stop service experience—ensuring that our customers can purchase with confidence and operate with complete peace of mind.
