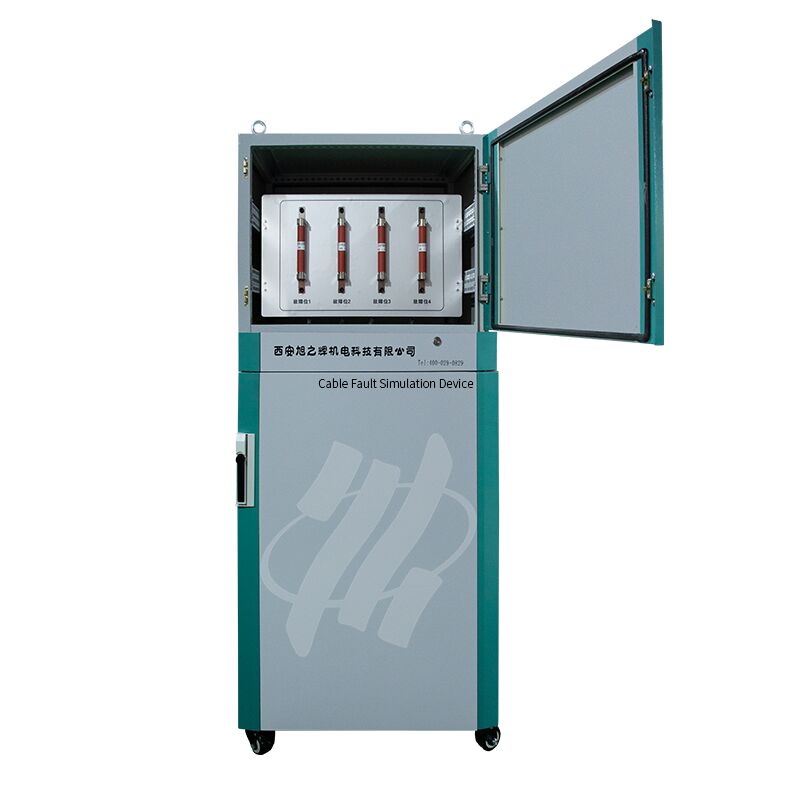

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display

Name: Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHFZ510-B2
Price: 1,050.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Xi'an Shaanxi
Marca:	XZH TEST
Certificazione:	ISO
Numero di modello:	XHFZ510-B2

Informazione dettagliata

Luogo di origine:

Xi'an Shaanxi

Marca:

XZH TEST

Certificazione:

ISO

Numero di modello:

XHFZ510-B2

Rapporto di ponte:

1/50, 1/20, 1/10, 1/5, 1/4, 1/2, precisione: ±0,25%

Resistenza massima da misurare:

10kΩ

Tensione massima da misurare:

5kVCC

Evidenziare:

High Light

Evidenziare:

Simulation Device Cable Fault Locator

Acoustic-Magnetic Synchronization Cable Fault Tester

Digital Display Cable Fault Simulation Device

Trading Information

Quantità di ordine minimo:

1 set

Imballaggi particolari:

Imballaggio in legno

Tempi di consegna:

5-8 giorni lavorativi

Termini di pagamento:

T/T

Capacità di alimentazione:

3000 unità/anno

Descrizione di prodotto

XHFZ510-B2

Product Overview

As urbanization speeds up, growing electricity demand drives the shift from overhead lines to cables. Training cable fault detection staff remains a long-standing issue. Our independently developed electrical test simulation training system—distilled from decades of power cable experience—simulates all cable faults, ensuring effective training.

Application

The Electrical Testing Simulation Training System is primarily used for training power cable testing personnel in various industries. The main industries involved include:
Power Industry: Various power plants, substations, power supply bureaus, etc.
Manufacturing Industry: Power cable manufacturers, cable fault detector manufacturers, etc.
Smelting Industry: Self-owned power plants, power plants, etc.
Education Industry: Laboratories, training bases, etc.
Research Institutes: Laboratories, training bases, etc.
Service Industry: Property management, service companies, logistics departments, etc.

Panel Introduction

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 0

Test Ends:

1) Main Insulation 1: Cable core end at the T-joint;

2) Test Ground 1: Cable shield end at the T-joint;

3) Main Insulation 2: Cable core end;

4) Test Ground 2: Cable shield end;

5) Grounding Post: Instrument grounding point, for safety protection.

Cable Fault Simulation Device with Acoustic-Magnetic Synchronization Digital Display 1
