Factory Price Xzh Test Underground Cable Pipeline Locator for Path and Depth Path Finder

Name: Factory Price Xzh Test Underground Cable Pipeline Locator for Path and Depth Path Finder
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHGX507
Price: 1,050.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Cina
Marca:	XZH Test
Certificazione:	CE/ISO
Numero di modello:	XHGX507

Informazione dettagliata

Luogo di origine:

Cina

Marca:

XZH Test

Certificazione:

CE/ISO

Numero di modello:

XHGX507

Evidenziare:

High Light

Evidenziare:

underground cable locator with warranty

cable pipeline locator for depth

cable fault locator factory price

Trading Information

Quantità di ordine minimo:

1 Unità

Imballaggi particolari:

Scatola di legno

Tempi di consegna:

5-8 giorni di lavoro

Termini di pagamento:

T/t

Capacità di alimentazione:

2000 unità/anno

Descrizione di prodotto

Basic Info.

Model NO.

XHGX507

Connectors

Coaxial BNC

Test Mode

Instant Test

Usage

Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Test Region

Unformed

Cable Type

Shielded

Power

Electricity

Certification

Customized

Color

Blue

Frequency

Low/Medium /High Frequency, Radio Frequency,50Hz

Display

Depth, Current

Measuring Depth

0-10m

a-Frame

Step Voltage

Transport Package

Wooden Cases

Specification

82*55*32

Trademark

XZH TEST

Origin

Shaanxi

Production Capacity

20000

Packaging & Delivery

Package Size

82.00cm * 55.00cm * 32.00cm

Package Gross Weight

30.000kg

- Signal strength is displayed on the large-screen LCD. Bars, arrows, and voice prompts assist the operator in determining the cable and fault location underground. It can be operated by a single person.
- All-digital design with a clear large-screen LCD graphic display, ensuring reliable positioning.
- Portable and lightweight for easy transport.
- Features a built-in rechargeable battery.
- Equipped with a built-in ohmmeter for measuring cable loop resistance.
- Can detect insulation faults up to 2MΩ to ground.
- Backlight function for night operation.
- Displays cable depth and current.

Transmitter:

Working frequency	low frequency (815Hz), intermediate frequency (8kHz), high frequency (33 kHz), radio frequency (83 kHz)
Working mode	direct connection method, coupling method (caliper method), induction method
Matching load	5 ohms-3000 ohms
Impedance display	5 digits
Overheating and over current	automatic protection
Power output	low gear, middle gear, high gear

Receiver:

Working frequency	low frequency (815Hz), intermediate frequency (8kHz), high frequency (33 kHz), radio frequency (83 kHz), Passive frequency 50Hz
Antenna mode	valley method (zero value mode), crest method (peak mode), step voltage method and clamp current method (A-frame)
Current indication	display the effective current value of the cable under test (unit: mA)
Working temperature	-10ºC+55ºC
Power indicator	graphic display
Battery life	continuous work> 8 hours: intermittent work> 16 hours
Signal strength indication	ladder diagram, digital range 0-999
Gain control	manual adjustment, dynamic range of 100dB
Detection depth	the maximum detection depth is around 10 meters
Maximum detection distance	The cable with good insulation can be up to 15km in the direct connection method
Depth measurement	press the depth key to display three digits, the maximum depth can be measured up to 10 meters
Accuracy	Low frequency: ±(1-5)%≤2.5m Radio frequency: ±(5-12)%≤2.5m

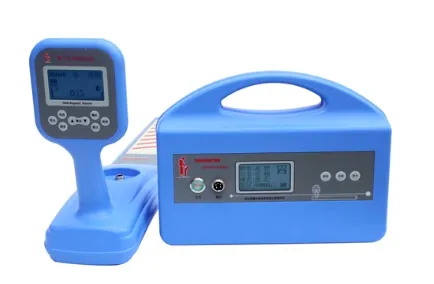

Factory Price Xzh Test Underground Cable Pipeline Locator for Path and Depth Path Finder 0

Underground Cable Pipe Locator
Transmitter frequency: from 815Hz-83KHz(4 kinds)
Output power: maximum 10W
Output current: 0~2A
Battery model: rechargeable lithium batteries
Receiving frequency: Detection frequency from 815Hz-83KHz
Passive frequency: 50Hz, radio
Depth measurement: 10 meters
Positioning accuracy : Low frequency: ±(1-5)%≤2.5m Radio frequency: ±(5-12)%≤2.5m
Maximum detection distance: The cable with good insulation in the direct connection method can reach up to 15km.

XHGX507 underground cable pipe locator is mainly used for cable fault location, cable identification, cable path and depth measurement. It can complete tasks that could only be accomplished by a few sets of instruments in the past.

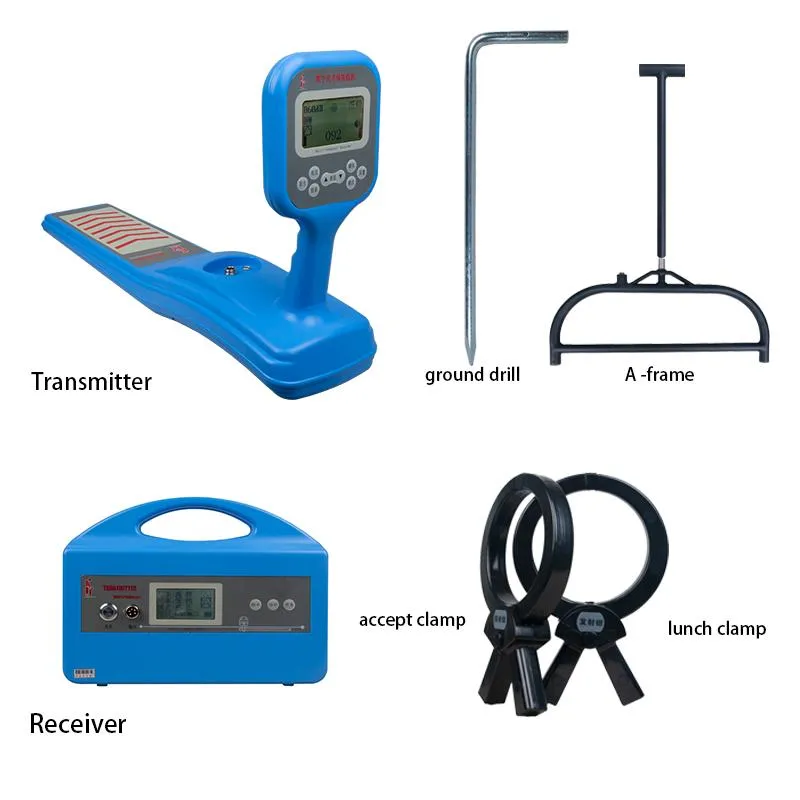

Factory Price Xzh Test Underground Cable Pipeline Locator for Path and Depth Path Finder 1
