DC Resistance Tester with Touch Screen for Transformer Winding

Name: DC Resistance Tester with Touch Screen for Transformer Winding
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZ1320
Price: 1,050.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Xi'an Shaanxi Cina
Marca:	XZH TEST
Certificazione:	ISO CE
Numero di modello:	XHZ1320

Informazione dettagliata

Luogo di origine:

Xi'an Shaanxi Cina

Marca:

XZH TEST

Certificazione:

ISO CE

Numero di modello:

XHZ1320

Evidenziare:

High Light

Evidenziare:

Capacitive touch screen Transformer DC Resistance Tester

DC resistance measurement DC Resistance Meter

Transformer winding Resistance Tester

Trading Information

Quantità di ordine minimo:

1 set

Imballaggi particolari:

imballaggio in legno

Tempi di consegna:

5-8 GIORNI LAVORATIVI

Termini di pagamento:

T/T

Capacità di alimentazione:

3000 unità/anno

Descrizione di prodotto

XHZ1320

For the power system, the transformer is the core equipment in the system, so the long-term and reliable operation of the transformer is related to the stability and reliability of the entire system.

The DC resistance of the transformer is a must-test item for semi-finished products, finished products factory testing, installation, handover testing and preventive testing of the power department in transformer manufacturing. It can effectively detect the material selection, welding, loose connection parts, missing strands, broken wires, etc. of the transformer coil. Defects and hidden dangers after operation. In order to meet the need for rapid measurement of transformer DC resistance, our company used its own technical advantages to develop a transformer DC resistance tester. This instrument is a new generation of fast tester that integrates three-phase test (Yn, Y, △) and demagnetization function. It is an ideal device for measuring the DC resistance of large power transformers. The screen adopts true color high-resolution industrial display screen, full touch operation, Chinese menu prompt function, simple and intuitive operation, fast test speed, high accuracy and wide range.

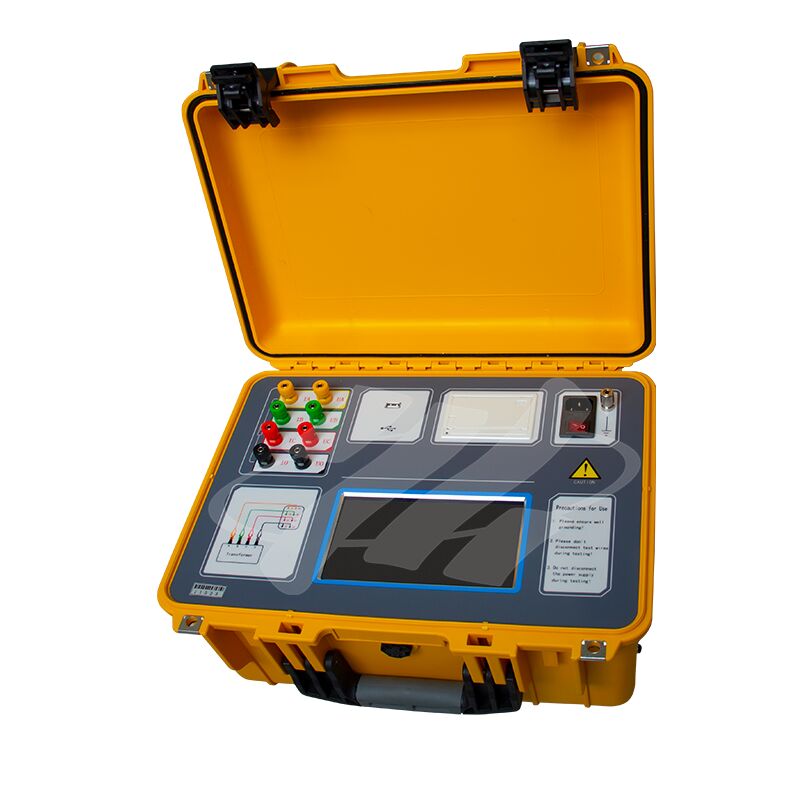

DC Resistance Tester with Touch Screen for Transformer Winding 0

1. High voltage terminal

Connect to transformer high voltage side bushing .

2. Test wiring diagram

3. Capacitive touch screen.

Display size 7.0 inches; resolution 1024×600.

4. Notes

5. Ground terminal

The instrument must be reliably grounded. There may be paint or rust on the on-site grounding point, which must be removed.

6. Power on/off key

Turn on the power switch for about 2 seconds to start up.

7. Printer

Print test results.

8. USB interface

An external USB flash drive is used to store test data; please use a USB flash drive in FAT or FAT32 format; during the storage process, it is strictly prohibited to remove the USB flash drive.

DC Resistance Tester with Touch Screen for Transformer Winding 1

Technical specification

Output current	Single phase	20A,10A,5A,1A,0.1A
	Three phase	10A+10A,5A+5A,1A+1A,0.1A+0.1A
Measuring range	Single phase	20 A level 0.5mΩ～1 Ω 10 A level 1.0mΩ～2 Ω 5 A level 10 mΩ～4 Ω 1 A level 0.1Ω～20Ω 0.1A level 2.0Ω～200Ω
	Three phase	10A + 10A gear 0.5mΩ ~ 0.8 Ω 5 A + 5 A level 10 mΩ ~ 1.6 Ω 1 A + 1 A level 0.1 Ω ~ 8.0 Ω 0.1A+0.1A gear 2.0 Ω ~ 80 Ω
Accuracy	±(reading×0.2%+2 words)
Resolution	0.1μΩ
Power supply	AC220V±10%, 50/60Hz
Operating temperature	-10℃～50℃
Relative humidity	<90%, no condensation
