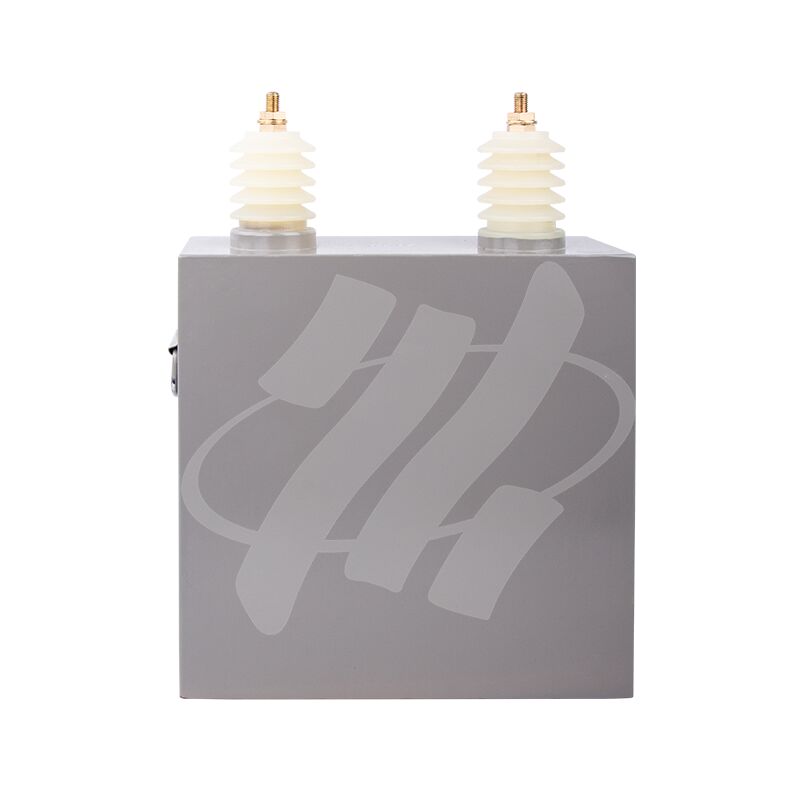

XHCC2/40
Overview
Pulse energy storage capacitors utilize imported thin film and a non-inductive wound structure, exhibiting excellent self-healing and explosion-proof properties. They are characterized by reliable structure, no leakage, no pollution, moisture resistance, fire resistance, long lifespan, small size, and light weight.
Applications
Pulse energy storage capacitors store the charging energy from a low-power source over a specific time interval. At a crucial moment, within an extremely short time interval, the stored energy is rapidly released, generating a powerful impulse current and high impulse power. They are primarily used in high-voltage impulse discharge testing, high-energy physics, oscillating circuits, geological exploration, and other fields.
Technical Parameters
| Ambient Temperature |
-20～+50℃ |
| Rated Capacitance |
2uF |
| Rated Voltage Rating |
40kV |
| Capacitor Tolerance |
±5% |
| Altitude |
≤2000 meters, altitudes above 2000 meters will be specified separately |
Precautions and Common Faults
1. If abnormal noises are heard inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
2. When using the pulse energy storage capacitor, please read the instruction manual and capacitor label to prevent overvoltage use.
3. During use, pay attention to the voltage rating of the connecting wires and the safe distance.
4. After the test, the high-voltage end must be fully discharged first.
5.Do not impact or knock the pulse energy storage capacitor, as this may easily damage the internal film.
If you are interested in this type of equipment, please feel free to contact us. We also accept customization services.
