China Factory Sells Portable High-Precision Cable Fault Identifier Cable Tester

Name: China Factory Sells Portable High-Precision Cable Fault Identifier Cable Tester
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHSB505DS
Price: 1,050.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Cina
Marca:	XZH Test
Certificazione:	CE/ISO
Numero di modello:	XHSB505DS

Informazione dettagliata

Luogo di origine:

Cina

Marca:

XZH Test

Certificazione:

CE/ISO

Numero di modello:

XHSB505DS

Evidenziare:

High Light

Evidenziare:

portable cable fault tester

high-precision cable identifier

industrial cable fault locator

Trading Information

Quantità di ordine minimo:

1 Unità

Imballaggi particolari:

Scatola di legno

Tempi di consegna:

5-8 giorni di lavoro

Termini di pagamento:

T/t

Capacità di alimentazione:

2000 unità/anno

Descrizione di prodotto

XHSB505DS

Model NO.

XHSB505DS

Certification

CE, ISO

Transport Package

Wooden

Specification

420mm× 250mm× 340mm

Trademark

XZH TEST

Origin

China Xi'an

HS Code

9031809090

Production Capacity

100 Pieces /Year

Product Description

Description
This product also has the functions of live (energy) cable identification, de-energy cable identification, AC current test, and AC voltage test. It is composed of a transmitter, a transmitting current clamp, a receiver, and a receiving flexible current clamp. At the same time, the test cable voltage range is AC 0.00V~600V (50Hz/60Hz), the measurable AC current range is AC 0.00A~5000A (50Hz/60Hz), and the measurable current frequency is 45Hz~70Hz.

Main Function

Handheld type receiver has 3.5inch color LCD Screen

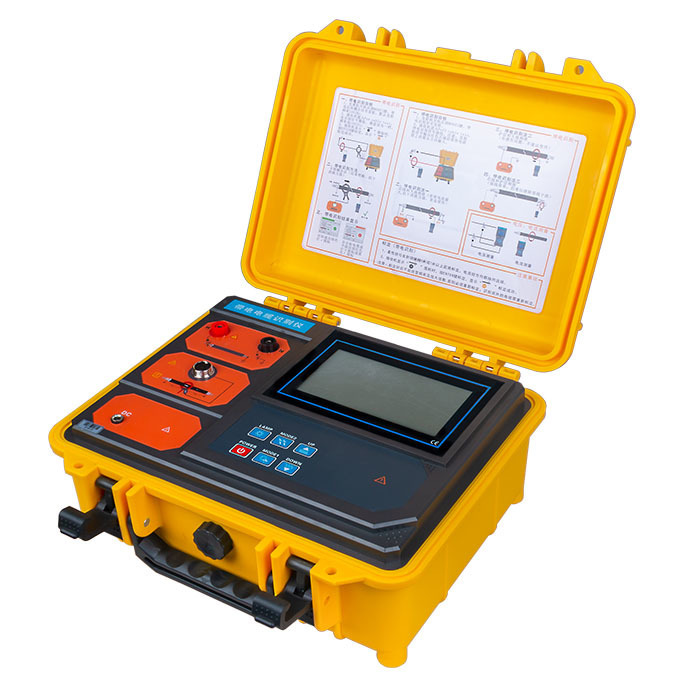

Transmitter adopts integrated special toolbox design, Good wear resistance, heat resistance and insulation performance.
Large-diameter clamp size Φ120mm
Multiple frequency to identify energy cable625Hz,1562Hz,2500Hz,10kHz
11.1V large-capacity rechargeable lithium battery, fully charged and continuously working for about 8 hours
De-energy cable identifying distance up to 10km, energy cable indentifying distance up to 5km
International standard IEC61010-1 CAT 600V,IEC61010-031,IEC61326. Pollution degree 2

Test range	De-energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~10kΩ; when the detection loop resistance is 10kΩ, the transmitter battery must be guaranteed to be above 11V (generally, the cable length can reach 0-10 kilometers, mainly by grounding resistance and wire Cable resistance)
Test range	Energy cable identifying: The coil can detect pulse signals with a loop resistance of 0Ω~200Ω; when the detection loop resistance is 200Ω, the transmitter battery must be guaranteed to be above 11V (generally it can reach a cable length of 0-5 kilometers, mainly by grounding resistance and wire Cable resistance)
Range	AC Voltage: 0.00V~600V(50Hz/60Hz)
	AC Current: 0.00A~5000A(50Hz/60Hz)
	Current frq: 45Hz~70Hz
Accuracy	AC Voltage :±2%±3dgt
	AC Current :±2%±3dgt
	Current frq :±2%±3dgt
