High Quality Best Price Cable Fault Locator 2000j 1000j High Voltage Pulse Generator

Name: High Quality Best Price Cable Fault Locator 2000j 1000j High Voltage Pulse Generator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHV535-4TS
Price: 1,050.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Cina
Marca:	XZH Test
Certificazione:	CE/ISO
Numero di modello:	XHHV535-4TS

Informazione dettagliata

Luogo di origine:

Cina

Marca:

XZH Test

Certificazione:

CE/ISO

Numero di modello:

XHHV535-4TS

Evidenziare:

High Light

Evidenziare:

Cable Fault Locator 2000j high voltage

Cable Fault Locator 1000j pulse generator

Cable Fault Locator with warranty

Trading Information

Quantità di ordine minimo:

1 Unità

Imballaggi particolari:

Scatola di legno

Tempi di consegna:

5-8 giorni di lavoro

Termini di pagamento:

T/t

Capacità di alimentazione:

2000 unità/anno

Descrizione di prodotto

XHHV535-4TS

Model NO.

XHHV535-4TS

Power

Electricity

Certification

CE, ISO

Customized

Non-Customized

Color

Black

Transport Package

Wooden Box with Foam Inside

Trademark

XZH TEST

Origin

China Xi'an

Production Capacity

1000pieces/Year

Description

The XHHV535-4TS high voltage pulse generator has applications in impulse discharge and withstand voltage test for low and high voltage cable fault test. There is a high - precision cable fault sampling waveform module and a small transformer installed within it. These components enable it to truly endure impacts without being damaged. It also supports automatic timing impact, manual impact and withstand voltage test functions.

Technical parameters

High voltage surge generator XHHV535-4TS	Surge voltage levels and adjustment ranges	Level 1 : 0-8KV Level 2: 0-16KV Level 3: 0-32KV
	Surge voltage levels switch	Manual
	Voltage adjustment type	Continuous
	Indication	High-voltage side voltage metering, indication of output voltage and current in real time
	Surge energy at each level	Up to 2048J
	Operating mode	Single trigger, cycle, DC
	Operating modes switch	Manual
	Impact time	about 7 seconds for automatic impact, arbitrary control time for manual impact
	Impact power	2KVA
	Continuous output current	60mA
	Built-in capacitor	4μF/32kV, 16μF/16kV, 64μF/8kV three-speed adjustment
	Safe operation	With zero start protection function, safe and reliable
	Discharge	Unique high-voltage measurement design, in the stop state, it will automatically discharge the internal capacitance of the device
	Working power	AC 220V±10% 50Hz±2Hz (other voltage and frequency can be customized)
	DC withstand voltage testing	Output voltage adjustment and indication range 0-32KV, Output current indication range 0-20A
	Burn current	Fault conditioning (burning) with current up to 60 mA @ 32 kV, 120 mA @ 16kV, 240mA@8kV.
	Connecting cable	High voltage output cable: 5m, Protective earthing cable:5m,power cord 2.5m. Cables can be customized according to customer requirements.
	Safety	Over-voltage, Over-current, Overheating protection. Automatic discharge after operation.
	Protection rating	Not lower than IP54
	Working power	AC 220V±15%, 50Hz±2Hz
	Dimensions(mm)	534L×444W×805H
	Total weight	About 120kg

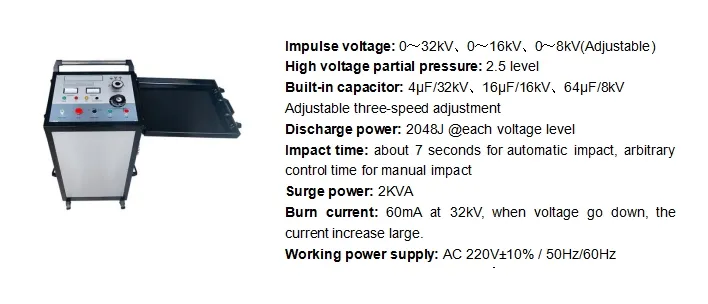

High Quality Best Price Cable Fault Locator 2000j 1000j High Voltage Pulse Generator 0

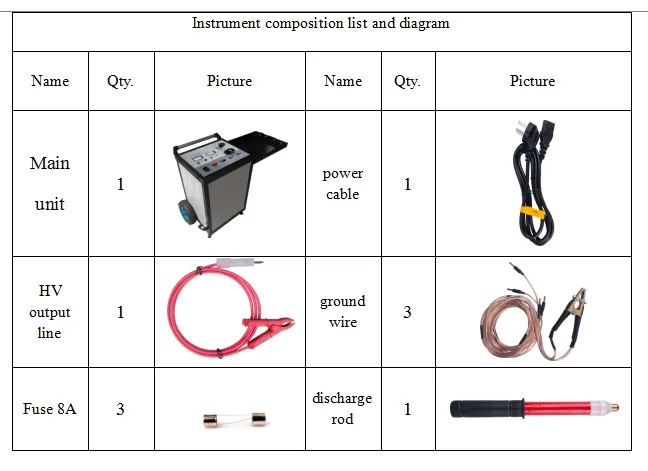

Packing List

High Quality Best Price Cable Fault Locator 2000j 1000j High Voltage Pulse Generator 1
