Voice Remote Control Cable Fault Piercing Device Double Gun

Name: Voice Remote Control Cable Fault Piercing Device Double Gun
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHZS506YS
Price: 1,050.00 USD
Availability: InStock

Dettagli del prodotto:

Luogo di origine:	Cina
Marca:	XZH Test
Certificazione:	CE/ISO
Numero di modello:	XHZS506YS

Informazione dettagliata

Luogo di origine:

Cina

Marca:

XZH Test

Certificazione:

CE/ISO

Numero di modello:

XHZS506YS

Evidenziare:

High Light

Evidenziare:

voice remote control cable fault locator

double gun cable piercing device

cable fault locator with remote

Trading Information

Quantità di ordine minimo:

1 Unità

Imballaggi particolari:

Scatola di legno

Tempi di consegna:

5-8 giorni di lavoro

Termini di pagamento:

T/t

Capacità di alimentazione:

2000 unità/anno

Descrizione di prodotto

XHZS506YS

Model NO.

XHZS506YS

Usage

Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester

Power

Electricity

Certification

CE, ISO

Customized

Color

Black

Product Name

Cable Puncture Device

Customized Support

OEM, ODM

Power Supply

Rechargeable Battery

Controller Weight

2.5 Kg

Whole Set

470 * 380 * 210 (mm)

Transport Package

Wooden Box with Foam Inside

Trademark

XZH TEST

Origin

China Xi&an

Production Capacity

1000

Product Description

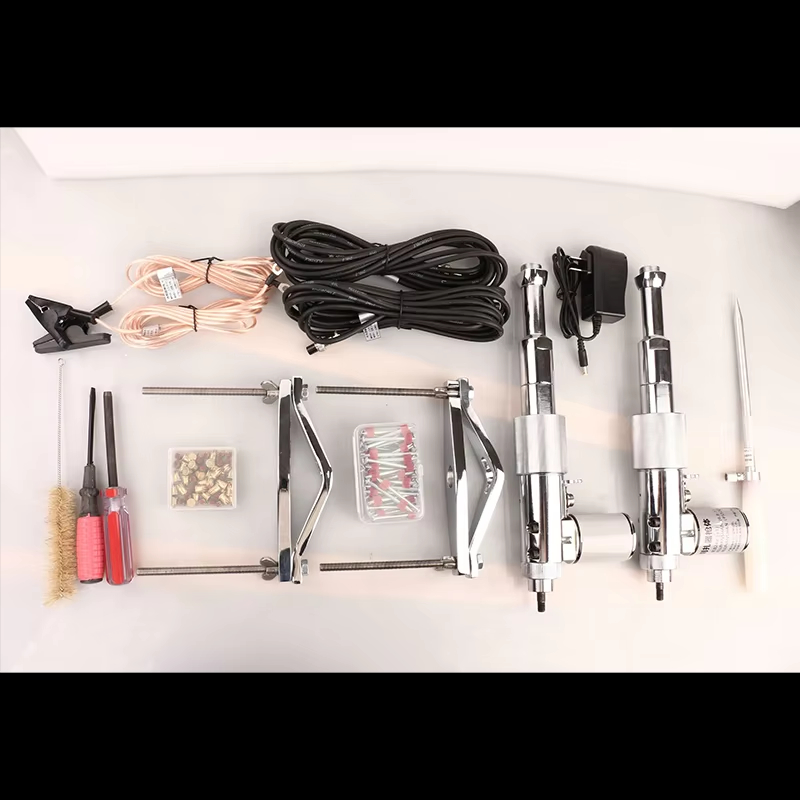

The cable piercing device is like a “cable detective” equipped with a “piercing expert” shooter and a “smart core” controller. The shooter, featuring a lightweight low-speed piston design, pierces cables precisely. It can be installed effortlessly at any angle. The controller harbors a “secret manual” of electronic detection and remotely commands the shooter to launch a “probe” nail. If the cable is energized, it short-circuits and “exposes its identity” instantly. If it remains silent, the cable is de-energized and safe to handle.

Features:

1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of stabbing and form a short circuit point;
2. Use wired + wireless remote control method to control, and can be remotely controlled through the wall;
3. Both AC and DC, built-in lithium battery pack and large-capacity energy storage device, long charging time;
5. Small size and light weight, very suitable for outdoor use.

Technical Parameters

Shooting device	2 gun bodies;
Remote control distance	greater than 10 meters, can be remote controlled across the wall;
Control line length	5 meters;
Clamp diameter	φ30-150mm;
Working power supply	charging AC 220V/50Hz, built-in battery can work continuously for more than 10 hours;
Controller	270×230×120mm 2.5kg;
Complete set	470×380×210mm 15.5kg (double gun 506Y).

Nail specification table:Nail specification table:

Cable diameter mm	30	40	50	60	70	80	90	100
Nail specifications	PS27C8		PS37C8		PS47C8		PS52C8

Bullet power table:

Specification	black	blue	yellow	red	Recommended Use	35kV and below	35kV and above
Power	smallest	Small	middle	big	Recommended Use	Use S1 yellow	Use S1 red (6.8*11mm)

Standard configuration: 50 rounds of S1 red (power level 5) bullets, 50 rounds of PS57C8 nails
